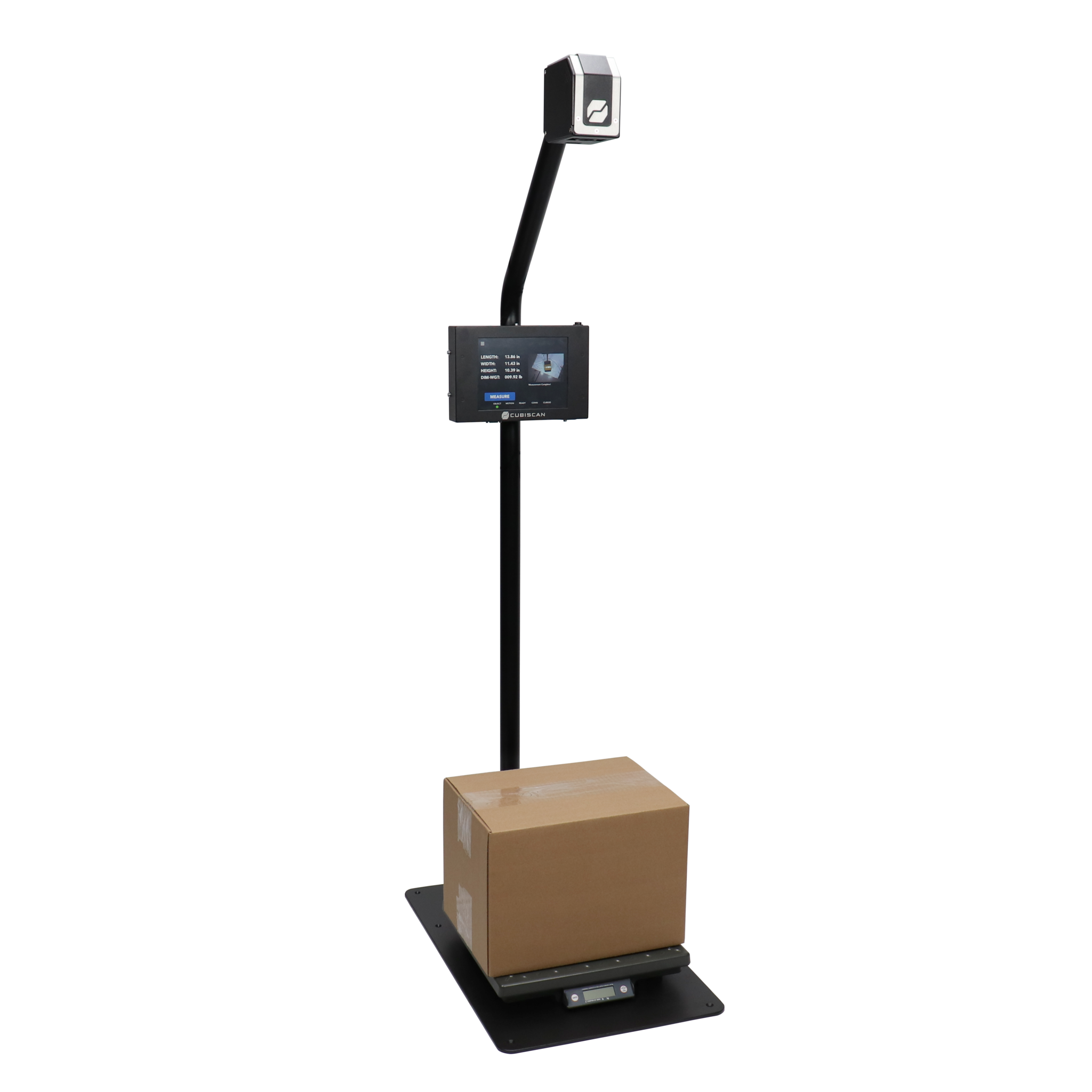

CubiScan 75 pro

Customized work for shipping

The CubiScan 75 pro is a powerful all-in-one solution for precise volume measurement and optional weight recording. With easy handling, direct system integration and high measuring accuracy, the device is ideal for optimizing shipping, order picking and warehouse logistics - for greater efficiency and transparent master data acquisition throughout the entire material flow.

This system records packages quickly, precisely and documented - ideal for optimizing shipping, picking, transport and storage location planning. Thanks to its simple operation, optional weight recording and direct Internet interface, it is a powerful complete solution for daily use in logistics automation.

Technical specifications



Additional information



Measuring range 75-125 cm x 50-70 cm x 5-60 cm
Device dimensions 81 cm x 81 cm x 121 cm
Maximum package size 140 cm x 80 cm x 90 cm
Measuring steps 0.5 - 1.0 cm
Measuring time 1-2 seconds
Object color cubic and non-cubic, non-transparent objects



Technical details

Further information can be found in the data sheet.

See product in action

For a complete overview of the capabilities of the CubiScan 75 pro, please watch the following demo video.

Main features

  • Easy handling

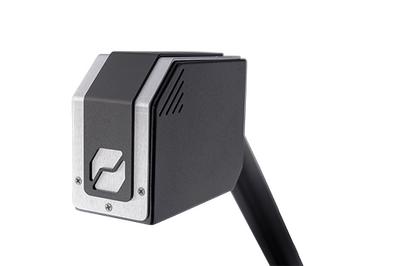

The package or cardboard box is simply placed on the measuring surface. An integrated sensor automatically detects the object, measures it within seconds using 3D laser scanning and simultaneously takes a photo for documentation purposes. Optionally, a scale can be integrated to record the weight.

  • Precise measurement & high efficiency

The exact volume measurement is fast and reliable - ideal for logistics environments, dispatch centers and courier, express and parcel services (CEP). The system is compatible with common logistics software, barcode scanners and label printers - for maximum automation and integration.

  • Overhead design for maximum accessibility

The innovative overhead design with no moving parts allows barrier-free access to the measuring surface from almost all sides. Ideal for confined working areas and ergonomic working in everyday logistics.

  • Legal relevance

Thanks to the conformity assessment in accordance with EU directives, all measurement data is legally relevant and can be used for freight-related invoicing (LFT) - reliable, accurate and documentable.
