CubiScan 25
Compact, precise and versatile

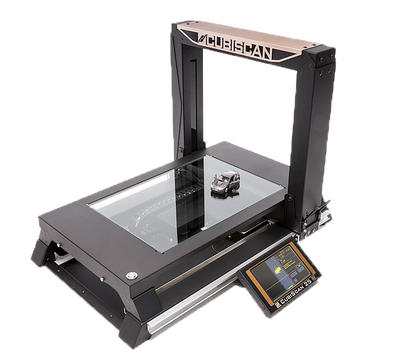

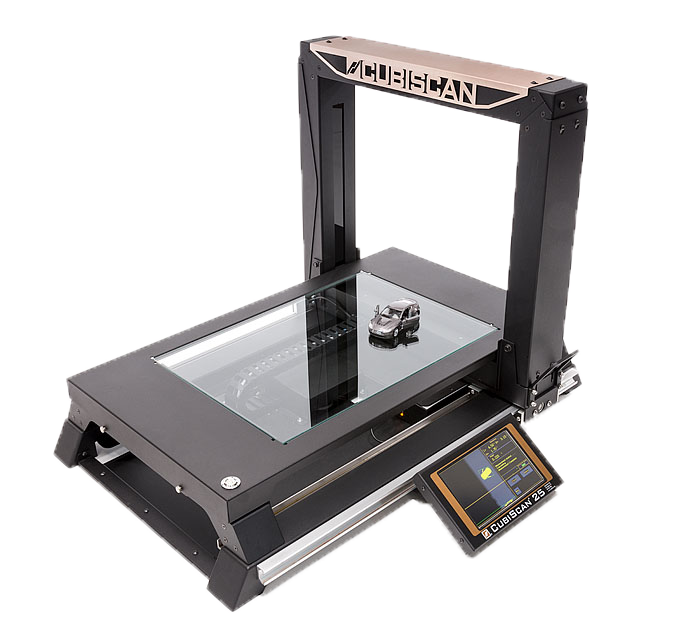

The high-precision, compact tabletop device CubiScan 25 was specially developed for the exact 3D measurement and weight recording of small, irregularly shaped objects.

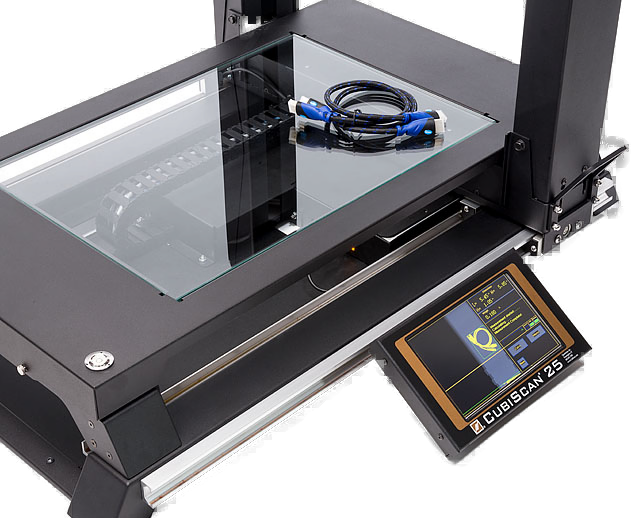

Equipped with a high-resolution light grid and an integrated precision scale, the system provides reliable dimensional data. The device is therefore ideal for applications in shipping, packaging and warehousing where fast, error-free master data acquisition is essential.
The CubiScan 25 combines a compact design with maximum measuring precision. This allows you to optimize your storage space, reduce packaging and shipping costs and increase the efficiency of your logistics processes.
Technical specifications
Additional information
| Measuring range | 45 cm x 35 cm x 30.5 cm |
| Device dimensions | 80 cm x 70 cm x 60 cm |
| Maximum package size | 45 cm x 35 cm x 30.5 cm |
| Measuring increments | 0.1 cm |
| Measuring time | < 5 Sekunden |
| Object color | Cubic and irregularly shaped, opaque objects |
| Weighing range | < 6 kg |
| Scale increments | 0.002 kg |
Technical details
Further information can be found in the data sheet.
See product in action
For a complete overview of the capabilities of the CubiScan 25, please watch the following demo video.
Main features
- Precision for small objects
Thanks to its integrated infrared sensor technology, the CubiScan 25 is ideal for accurate 3D measurement and weight detection of small, loose and irregularly shaped objects. The ideal solution for use in packaging systems, sorting centers and picking areas.
- Simple handling - no manual input required

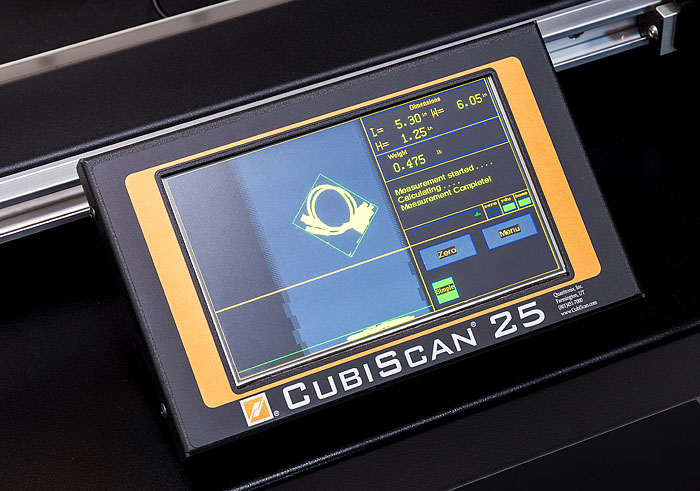

No additional user input is required after measurement. This ensures a high level of data integrity - ideal for automated processes without manual sources of error.
- Precise measurement & high efficiency
The CubiScan 25 reliably calculates packaging volumes and materials and helps to make optimum use of storage space. This reduces packaging and shipping costs and supports more sustainable, economical logistics.
- Seamless system integration
The CubiScan 25 is specially designed for direct integration into warehouse management systems (WMS) - for smooth integration into existing IT structures and digital process chains.
- Legal relevance
All measurement data is legally usable and can be used for freight-based billing in accordance with the EU Measurement Directive (LFT) - ideal for companies with high data security and billing accuracy requirements.
- Optional smart mobile extension CubiCart
With the optional CubiCart, the CubiScan 25 becomes a mobile measurement solution. Ideal for flexible use directly at the point of data capture - from picking to shipping.
