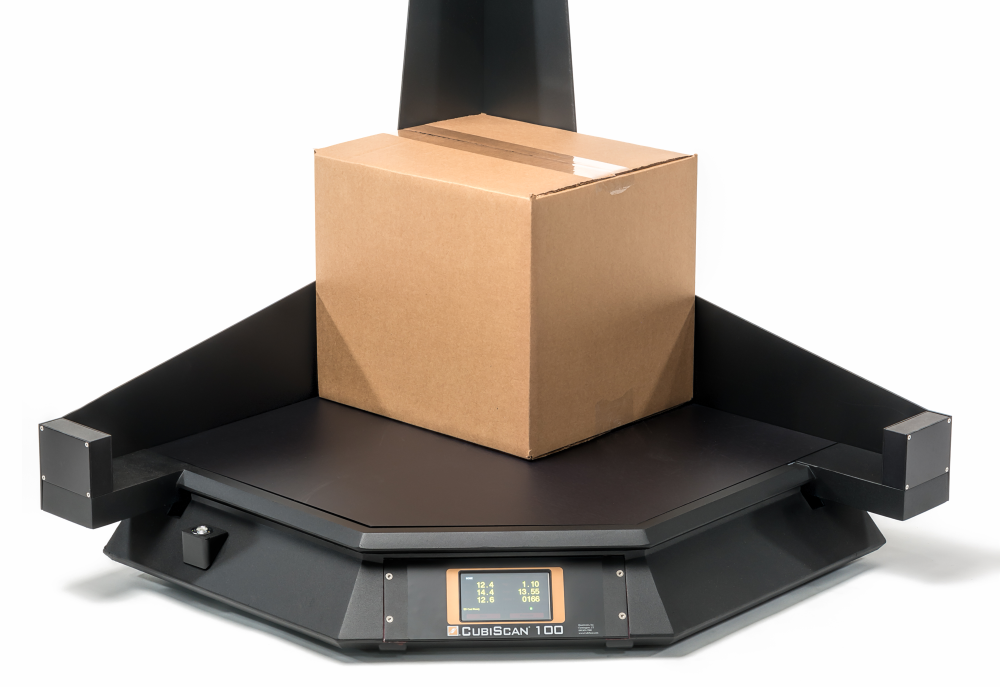

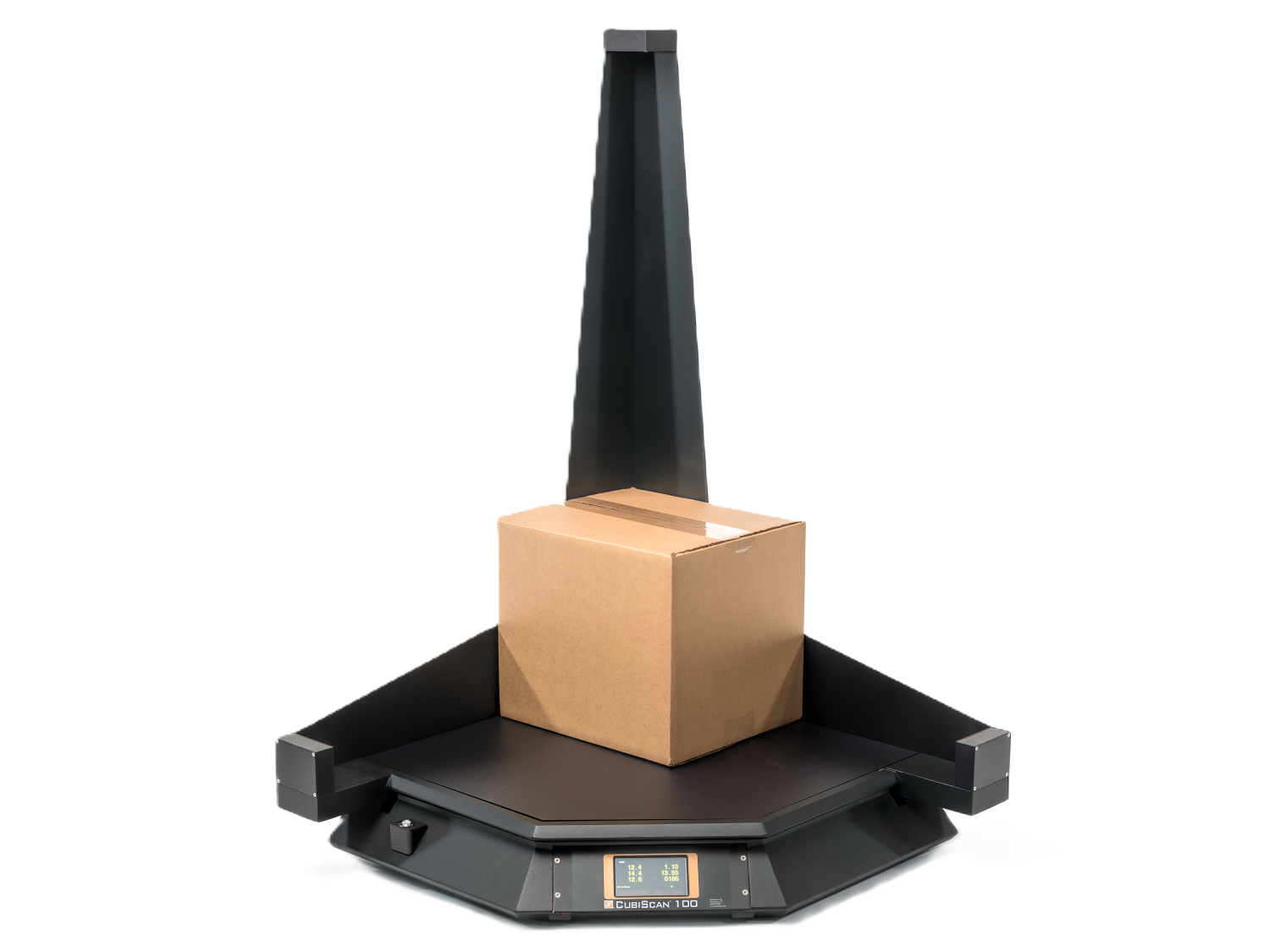

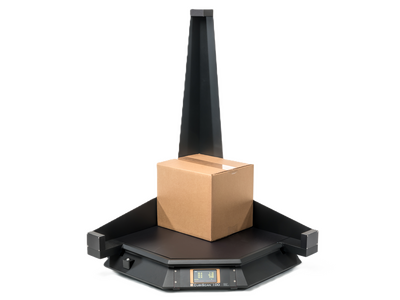

CubiScan 100
Volume & weight under control
The CubiScan 100 enables reliable, tamper-proof and legally compliant recording of volume and weight data in warehousing and shipping.
Equipped with innovative 3D visualization, integrated keyboard, digital display and direct system connection, it ensures efficient master data acquisition, intuitive operation and seamless further processing in your data management system.
By using the CubiScan 100, you get a powerful solution for reliable master data acquisition and efficient, seamless processes in warehouse logistics and dispatch processing.
Technical specifications
Additional information
| Measuring range | 60 cm x 60 cm x 90 cm |
| Device dimensions | 80 cm x 80 cm x 120 cm |
| Maximum package size | 60 cm x 60 cm x 90 cm |
| Measuring steps | 0.2 cm |
| Measuring time | 1-2 seconds |
| Object color | only cuboidal, not transparent, i.e. opaque objects |
| Weighing range | < 50 kg |
| Scale increments | 0.02 kg |
| Legal for Trade | yes |
Technical details
Further information can be found in the data sheet.
See product in action
For a complete overview of the capabilities of the CubiScan 100, please watch the following demo video.
Main features
- Easy to use

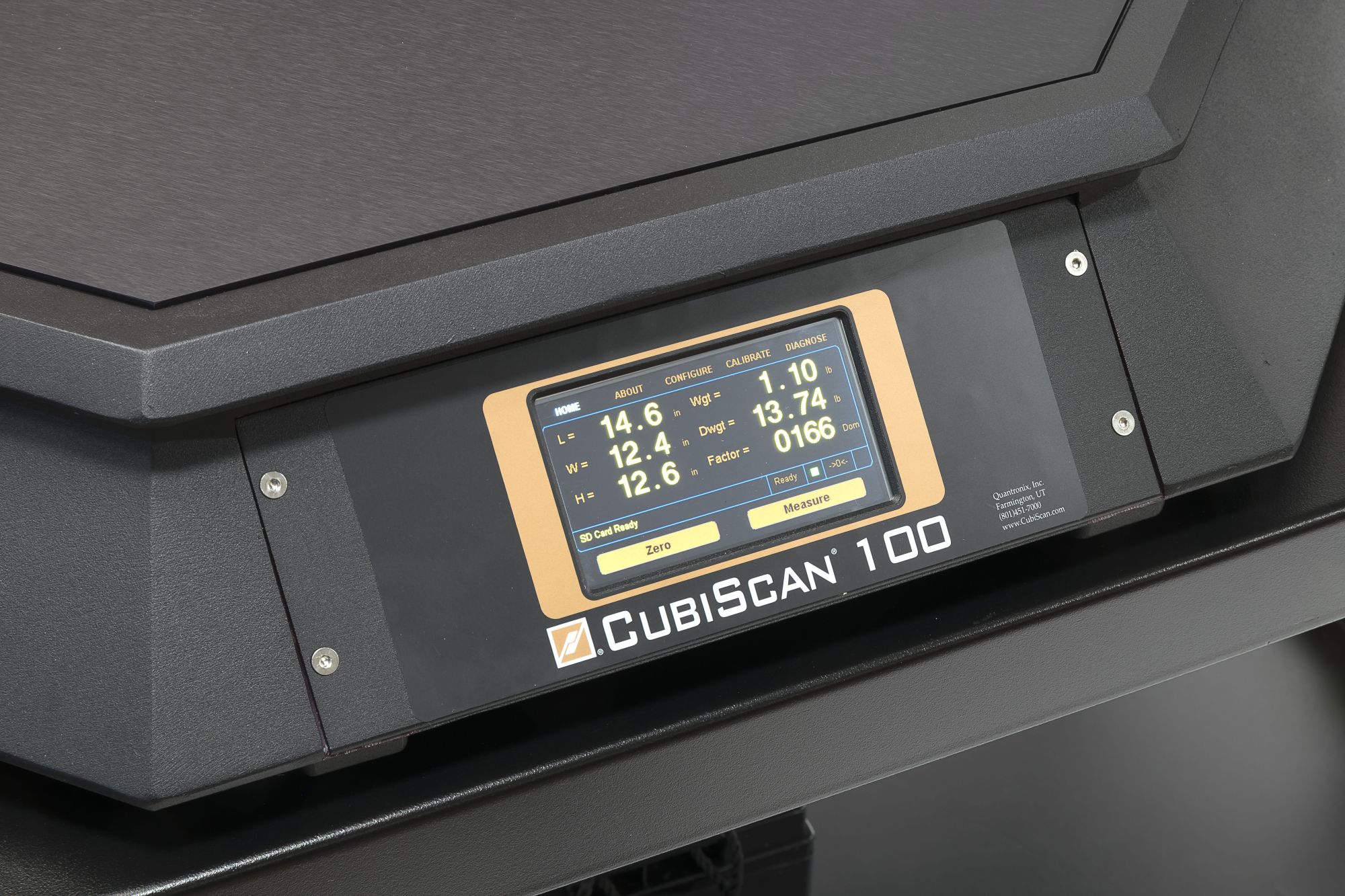

The CubiScan 100 is operated intuitively via an integrated keypad and a clearly structured digital display. The innovative software not only displays dimension and weight data, but also enables a graphic 3D visualization of the measured freight - for maximum transparency in the measuring process.
- Precise measurement & high efficiency
The measurement of cubic objects is fully automatic and contactless - without any manual input. This minimizes sources of error, maximizes data quality and ensures reliable master data acquisition.
- Legal relevance
All recorded volume and weight data is subject to conformity assessment in accordance with the EU Measurement Directive (LFT) and is therefore legally usable - for example for freight-related invoicing or in the quality-assured storage process.
