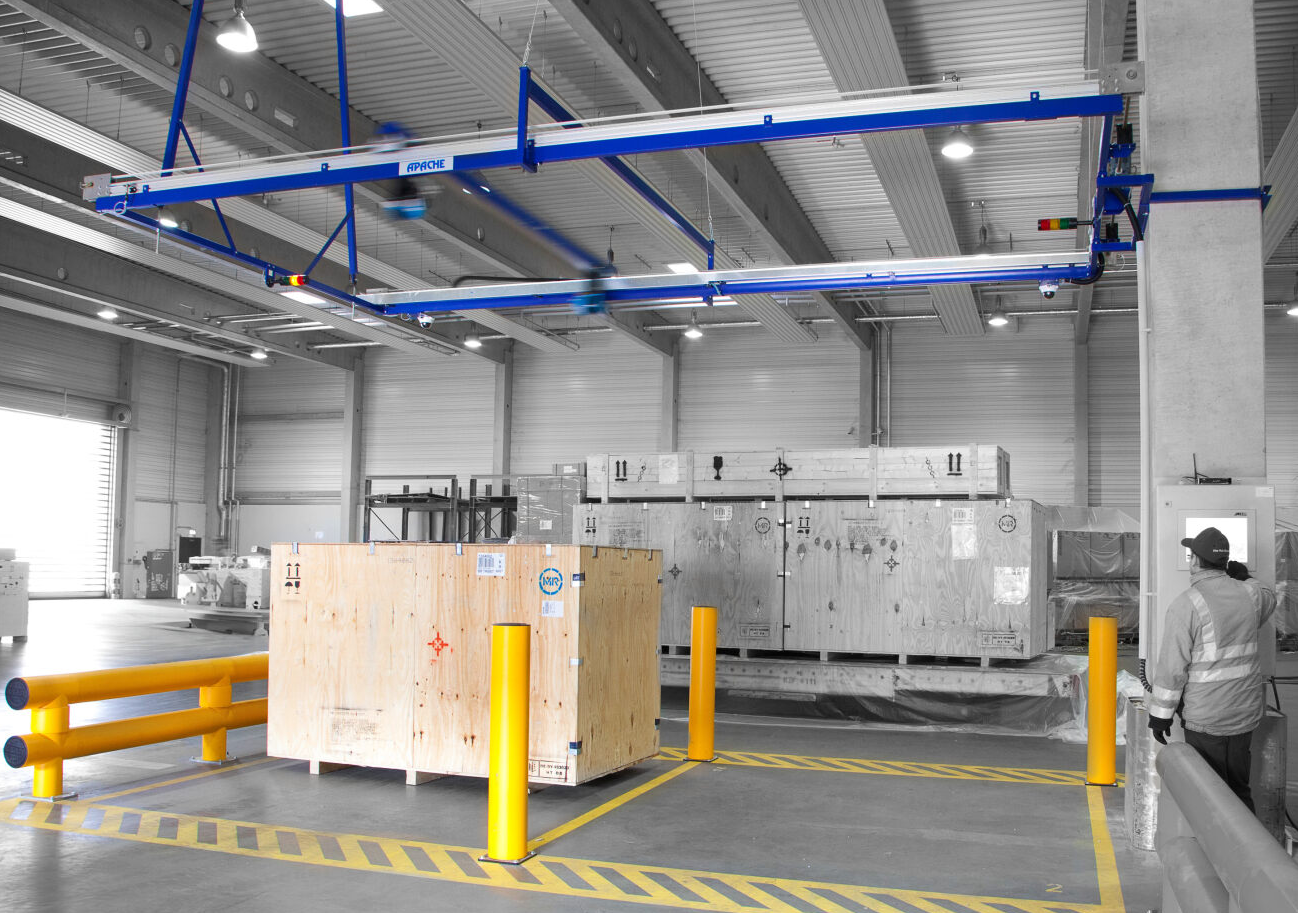

APACHE portal dual zone
Two zones. Double the efficiency.
The APACHE portal dual zone sets new standards in the automated 3D measurement of general cargo - especially where speed is of the essence. Two independent measuring zones enable a smooth change between measuring and loading - without waiting time, without bottlenecks. The system impresses with maximum capacity, maximum precision and robust reliability, even under extreme conditions.
Practical application with technology enhancement:
In an ongoing project at the customer, the APACHE portal dual zone was additionally equipped with an individual deep learning camera unit. This means that even more precise classifications and image analyses can now be carried out. Even transparent, white or reflective films are reliably detected - without affecting the measurement quality.
The result: a test customer had an engine measured - and immediately became a new customer.
Two zones, one goal: greater efficiency with consistent precision. Whether large freight, long goods or difficult surfaces - this system is made for demanding logistics processes.
More performance. More precision. More future. Double the power for your intralogistics - with APACHE from AKL-tec.
Technical specifications
Additional information
| Max. Measuring area per measuring station | 250 (700) cm x 250 cm x 280 cm |
| Device dimensions | Depending on the selected substructure (ceiling, wall, free-standing) |
| Scale division | 2 cm / 2 cm / 1 cm |
| Minimum package size | 20 cm x 20 cm x 10 cm |
| Movement speed |
approx. 0.4 m/sec. |
| Scales | Usually one platform per measuring station. Size and weighing range as required. The technical data can be found in the weighing equipment manufacturer's documentation. |
Technical details
Further information can be found in the data sheet.
See product in action
For a complete overview of the capabilities of the APACHE portal dual zone, please watch the following demo video.
Main features
- Two independent measuring zones for parallel work processes
While one zone is being measured, the next piece of freight can be placed in the other. This significantly increases throughput - ideal for handling general cargo under time pressure.
- Flexibly expandable for long goods and special formats
The measuring surfaces and optional platform scales can be interconnected on a modular basis to precisely measure and weigh even long items - with just one system.
- Precise 3D measurement & camera-based documentation
Two laser probes per zone reliably measure length, width, height and volume. An optional camera provides photorealistic images - for digital traceability, quality control and document handling.
- Seamless system integration & legally compliant data transfer
All recorded dimensional data, images and weights are automatically transferred to your customer database, WMS or ERP systems via a defined interface - legally relevant in accordance with the EU Measurement Directive.
- Robust, low-maintenance and long-term tested in real operation
The APACHE portal dual zone with a measuring length of 12 m has been successfully in use since 2018 - even under heavy dust loads and continuous ventilation. The system is extremely durable and only requires maintenance every two years.
