APACHE KEE
Recording of package units for trade

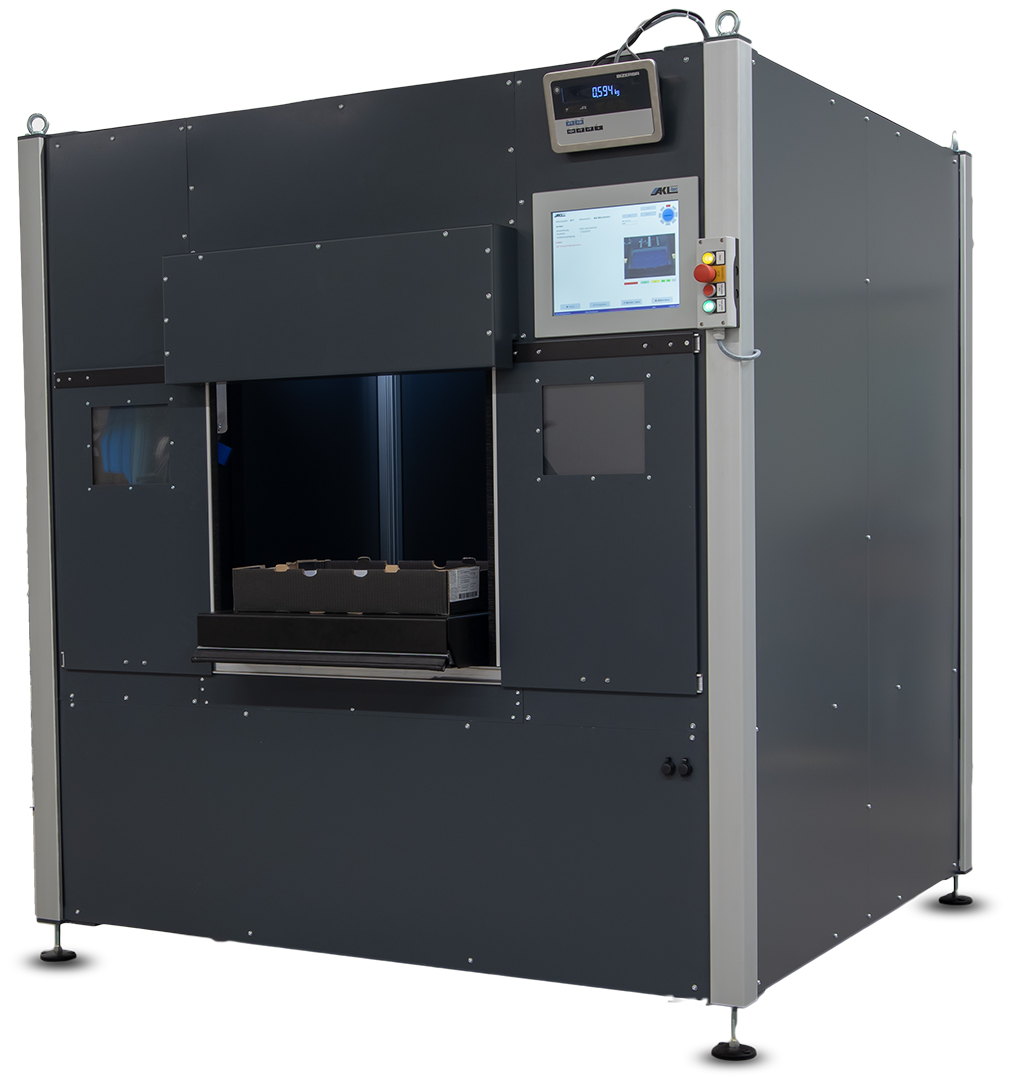

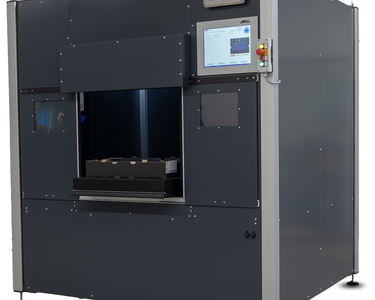

The APACHE KEE (package detection unit) is the innovative solution for the automated detection of packaging units such as fruit and vegetable crates and other typical retail containers.
Equipped with precise 3D measurement, weight recording, object recognition, feature analysis and exact master data recording, the system supports users in the safe further processing, storage and handling of a wide variety of packages.
APACHE KEE automatically recognizes packaging types, analyses stackability, checks for structural integrity and provides legally relevant dimensional data.
The solution was developed specifically for the requirements of intralogistics in retail and works efficiently, intuitively and is fully digitally integrated. This allows you to optimize your logistics processes, avoid handling errors and create the basis for efficient, digital warehouse optimization.
The smart collating system for maximum control and process reliability - developed by AKL-tec.
Technical specifications
Additional information
| Max. Measuring area | 210 cm x 210 cm x 280 cm |
| Device dimensions | 180 cm x 200 cm x 210 cm |
| Scales | The technical data of the weighing device can be found in the manufacturer's documentation. |
| Weighing range | <30 kg |
| Scale increments | 0.002 kg |
| Maximum package size | 62 cm x 42 cm x 35 cm |
Technical details
Further information can be found in the data sheet.
Main features
- Precise 3D measurement and weight recording
The dimensions and weight of each packaging unit are precisely recorded within a few seconds using a fully automatic measuring process - for reliable master data recording and efficient logistics automation.
- Automatic recognition of packaging types
The system analyses the shape, volume and structure, recognizes special features such as handles or recesses, and also detects stacking lugs, edges and corner positions in order to classify packages fully automatically in terms of their stackability and shape characteristics.
- Integrated inspection for structural integrity
Targeted contour detection and shape evaluation detect indications of damaged, deformed or unstable containers - for greater handling safety and fewer incorrect packages. At the same time, a high-resolution photo of the object is taken and saved for visual documentation. All the data recorded is transferred directly to your customer database or ERP systems via defined interfaces.
- Simple operation via touch display
The measurement process is started at the touch of a button. The user receives the complete dimensional data and characteristics via an intuitive touch interface - comprehensible, transparent and can be used without prior knowledge.
- Legally relevant measurement data in accordance with the EU directive
All recorded data meets the requirements of the EU Measurement Directive and can be used for legally compliant billing, ULD planning or internal documentation - verified, reliable, binding
